Stacked stainless steel long-radius buttweld elbows in the warehouse

Stainless Steel · Ferrous

Buttweld Fittings

Name: Stainless Steel Buttweld Fittings
Brand: Ritvik Metal Impex
SKU: RMI-002

Elbows, tees, reducers, return bends, stub-ends, caps, collars and crosses in Stainless Steel (ASTM A403 WP304/316/321/347), Carbon Steel (ASTM A234 WPB) and Alloy Steel (ASTM A234 WP1/WP5/WP9/WP11). Sizes 1/4" to 32" NB, Schedule 5S to XXS, seamless & welded.

Material

Stainless Steel

Form

Fittings

Buttweld Fittings Specifications

Chemical Composition for Buttweld Fittings supplied by Ritvik Metal Impex
Grade	C	Mn	P	S	Si	Cr	Ni	Mo	Other
TP 304	0.08	2.00	0.045	0.030	1.00	18.0–20.0	8.0–11.0	—	N 0.10
TP 304L	0.035	2.00	0.045	0.030	1.00	18.0–20.0	8.0–13.0	—	N 0.10
TP 316	0.08	2.00	0.045	0.030	1.00	16.0–18.0	11.0–14.0	2.00–3.00	N 0.10
TP 316L	0.035	2.00	0.045	0.030	1.00	16.0–18.0	10.0–15.0	2.00–3.00	N 0.10
TP 321	0.08	2.00	0.045	0.030	1.00	17.0–19.0	9.0–12.0	—	Ti ≥ 5 × C
TP 347	0.08	2.00	0.045	0.030	1.00	17.0–19.0	9.0–13.0	—	Nb ≥ 10 × C
TP 310S	0.08	2.00	0.045	0.030	1.00	24.0–26.0	19.0–22.0	—	—
TP 317L	0.035	2.00	0.045	0.030	1.00	18.0–20.0	11.0–15.0	3.00–4.00	N 0.10

Note: Per ASTM A312 / A240. Values are maximum % by weight unless a range is shown. ASTM A312 permits 0.035% max carbon on L grades, where ASTM A240 plate specifies 0.030% max.

Mechanical Properties for Buttweld Fittings supplied by Ritvik Metal Impex
Grade	Tensile Strength (min)	Yield Strength 0.2% (min)	Elongation (min)	Hardness (max)
TP 304	515 MPa (75 ksi)	205 MPa (30 ksi)	35%	90 HRB / 192 HBW
TP 304L	485 MPa (70 ksi)	170 MPa (25 ksi)	35%	90 HRB / 192 HBW
TP 316	515 MPa (75 ksi)	205 MPa (30 ksi)	35%	90 HRB / 192 HBW
TP 316L	485 MPa (70 ksi)	170 MPa (25 ksi)	35%	90 HRB / 192 HBW
TP 321	515 MPa (75 ksi)	205 MPa (30 ksi)	35%	90 HRB / 192 HBW
TP 347	515 MPa (75 ksi)	205 MPa (30 ksi)	35%	90 HRB / 192 HBW
TP 310S	515 MPa (75 ksi)	205 MPa (30 ksi)	35%	90 HRB / 192 HBW

Note: Specified minimum values in the solution-annealed condition, per ASTM A312 / A240. Elongation is measured in 50 mm (2 in.).

Size Range & Supply Condition for Buttweld Fittings supplied by Ritvik Metal Impex
Parameter	Range
Buttweld size range	1/4" NB to 32" NB seamless, up to 48" NB welded

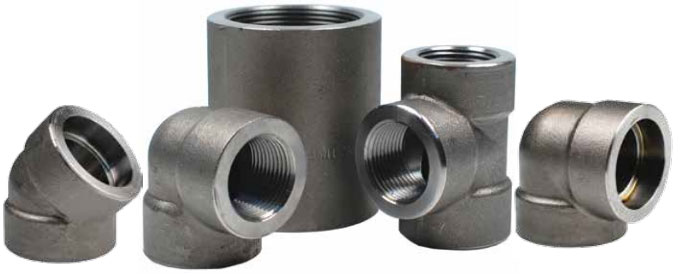

Forged fitting size range	1/4" NB to 4" NB
Wall thickness	Schedule 5S to XXS
End connection	Buttweld, socketweld, screwed (NPT / BSP / BSPT)
Dimensional standards	ASME B16.9 (buttweld), B16.11 (forged), B16.28 (short radius), MSS SP-43 / SP-75 / SP-79 / SP-83 / SP-95
Material standards	ASTM A403 / A234 / A182 / A815 / B366

Physical Properties for Buttweld Fittings supplied by Ritvik Metal Impex
Property	SS 304 / 304L	SS 316 / 316L
Density	8.00 g/cm³	8.00 g/cm³
Melting range	1400–1450 °C	1375–1400 °C
Modulus of elasticity	193 GPa	193 GPa
Thermal conductivity (100 °C)	16.2 W/m·K	16.3 W/m·K
Specific heat (0–100 °C)	500 J/kg·K	500 J/kg·K
Thermal expansion (0–100 °C)	17.2 µm/m·°C	15.9 µm/m·°C
Electrical resistivity	720 nΩ·m	740 nΩ·m
Max continuous service temp.	≈ 870 °C	≈ 925 °C
Magnetic response (annealed)	Non-magnetic	Non-magnetic

Note: Values at 20 °C unless stated. Thermal expansion matters when austenitic stainless is welded to carbon steel.

Equivalent Grades Across Standards for Buttweld Fittings supplied by Ritvik Metal Impex
ASTM / AISI	UNS	EN / DIN	EN Name	JIS	GB
304	S30400	1.4301	X5CrNi18-10	SUS 304	06Cr19Ni10
304L	S30403	1.4307	X2CrNi18-9	SUS 304L	022Cr19Ni10
316	S31600	1.4401	X5CrNiMo17-12-2	SUS 316	06Cr17Ni12Mo2
316L	S31603	1.4404	X2CrNiMo17-12-2	SUS 316L	022Cr17Ni12Mo2
321	S32100	1.4541	X6CrNiTi18-10	SUS 321	06Cr18Ni11Ti
347	S34700	1.4550	X6CrNiNb18-10	SUS 347	06Cr18Ni11Nb
310S	S31008	1.4845	X8CrNi25-21	SUS 310S	06Cr25Ni20
430	S43000	1.4016	X6Cr17	SUS 430	10Cr17

Note: Cross-reference for enquiries written against European, Japanese or Chinese standards. Equivalents are close but not always identical — check the composition limits before substituting.

Ordering & Supply for Buttweld Fittings supplied by Ritvik Metal Impex
Parameter	Detail
Minimum order quantity	5 kg (mixed sizes within a grade can be combined to reach the MOQ)
Price basis	Ex-works Mumbai, FOB or CIF — quoted per kg, per metre or per piece depending on the form
Lead time	Ready stock dispatched in 1–3 working days; mill orders typically 2–6 weeks
Certification	Mill test certificate to EN 10204 3.1 as standard; 3.2 with third-party witness, IBR and NACE MR0175 on request
Testing available	PMI, IGC (ASTM A262), hydrostatic, ultrasonic, radiographic, impact and hardness testing
Third-party inspection	Bureau Veritas, TÜV, DNV, SGS, Lloyd's Register, Intertek, RITES and client/EPC inspection
Packing	Wooden crates or pallets, plastic caps on pipe ends, VCI wrapping where required, seaworthy export packing
Payment terms	Advance, against proforma invoice, or LC at sight for export orders
Supply area	Across India and export to the Middle East, Europe, the USA, Africa and South East Asia
Product form	Fittings

Note: Cut lengths, non-standard sizes and special certification are available on request. Prices are quoted against grade, size, schedule and quantity.

Values shown are the specified minima and maxima published in the governing standards and are given for guidance. The mill test certificate supplied with your consignment reports the actual results for that heat.

Product Guide & Technical Article

Buttweld Pipe Fittings: Types, Standards & Applications

Buttweld fittings are permanent pipe connections used in high-pressure, high-temperature industrial piping systems. Their welded joints offer superior strength and leak-proof performance compared to threaded alternatives.

Types of Buttweld Fittings

Common types include elbows (45° and 90°), equal and reducing tees, concentric and eccentric reducers, caps, stub-ends, return bends, and crosses. Each serves a specific function in directing, branching, or terminating flow.

Material Grades

Available in Stainless Steel (ASTM A403 WP304/316/321), Carbon Steel (ASTM A234 WPB), Alloy Steel (WP1/WP5/WP11/WP22/WP91), Duplex Steel, and Nickel Alloys including Monel, Inconel, and Hastelloy.

Standards & Dimensions

Manufactured to ASME B16.9 dimensional standards with wall thicknesses from Schedule 5S to XXS. Sizes range from 1/4" NB to 32" NB for seamless, and up to 48" for welded fittings.

Industries Served

Oil & gas refineries, chemical plants, power stations, shipbuilding, and pharmaceutical facilities rely on buttweld fittings for their critical piping networks.

About Our Buttweld Fittings Supply

Ritvik Metal Impex is a trusted Stainless Steel Buttweld Fittings supplier and stockist based in Mumbai, Maharashtra. We supply buttweld fittings across India including Mumbai, Pune, Delhi, Ahmedabad, Chennai, Hyderabad, Surat, and Bangalore, as well as export to UAE, Saudi Arabia, UK, USA, and South East Asia. Our buttweld fittings are sourced from reputed mills with full material traceability and supplied with Mill Test Certificates (MTC). We offer competitive pricing, ready stock for standard sizes, and fast dispatch for urgent requirements. Contact us for the best Stainless Steel buttweld fittings price in India.
